"High Standard Solutions for the Virtual Product Development Process in Power Transmission Engineering"
|
|
|
|
|
|
 |
|
|
|
|
 |
Engine
Crank Train Basic and Advanced, Dual Mass Flywheel, 3D Bearings |
|
|
|
|
|

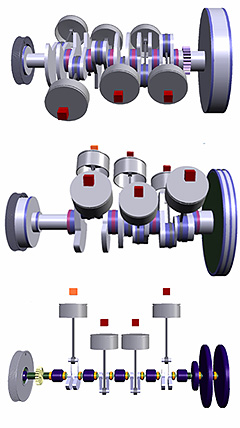

Crank Train
 |
|
Automated reduction from a fully flexural simulation model to a torsional vibration model
|
|
|
Engine characteristic definition by gas pressure input |
|
|
Study of the hubload influence of FEAD or timing drives on the crank train through a coupled simulation |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

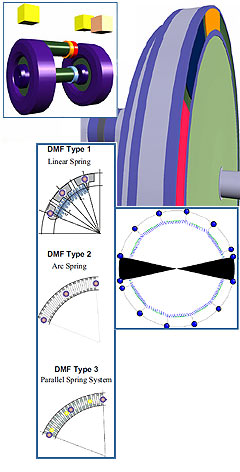

Dual Mass Flywheel
|
|
Detailed dynamic model as a series of spring and mass elements with nonlinear and rpm dependent friction and geometry influence
|
|
|
Implementation of the Valeo CDMF as a SIMDRIVE3D customer element |
|
|
DMF can be modeled as a combination of rheologic elements for fast studies |
|
|
Advanced approach of a full 3D geometry modeling including bearings and flexplate flexural bending |
|
|
|
|
|
|
|
|

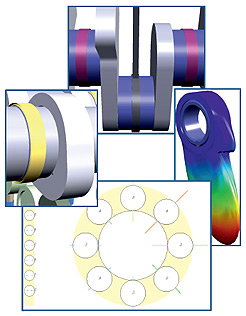

3D Bearings
|
|
Direct solution of the equation in time domain considering oil drillings and tilting under dynamic load
|
|
|
A significant less time consuming approach available using a precalculated data map |
|
|
|
|
|
|
|
|
|
|
